Configuring Object Storage

Ente relies on S3-compatible cloud storage for storing files (photos, thumbnails and videos) as objects.

Ente ships MinIO as S3-compatible storage by default in quickstart and Docker Compose for quick testing.

This document outlines configuration of S3 buckets and enabling replication for further usage.

Architecture

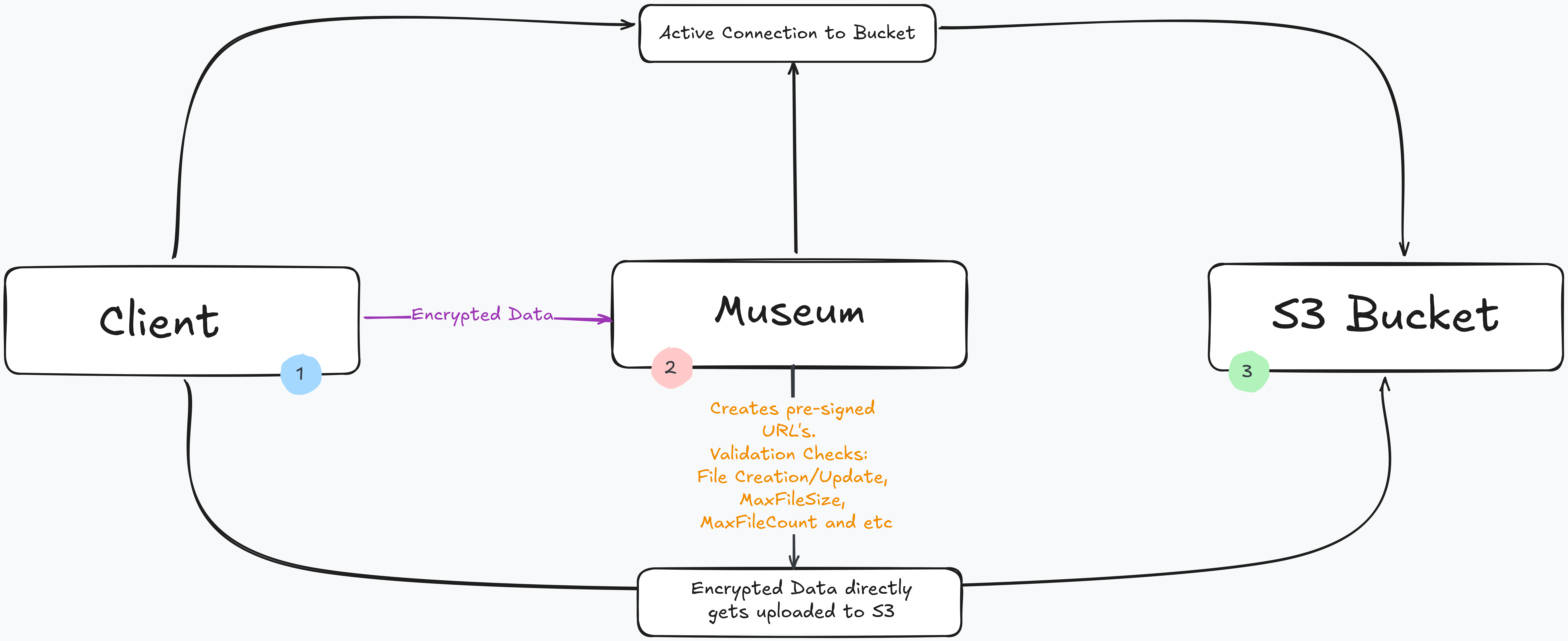

There are three components involved in uploading a file:

1. The client (e.g. the web app or the mobile app)
2. Ente's server (museum)
3. The S3-compatible object storage (e.g. MinIO in the default quickstart)

A file upload flows as follows:

1. The client asks museum where it should upload the file to.
2. Museum creates pre-signed URLs for the configured S3 bucket and returns them.
3. The client uploads directly to the S3 bucket using those URLs.
4. The client informs museum that the upload is complete, and museum verifies the object via a HeadObject call.

The important consequence is that both the client and museum must be able to reach your S3 bucket at the same address. Museum embeds the bucket's endpoint value into every pre-signed URL, so an address that only resolves inside the server (for example localhost:3200) will fail when handed to a phone or another machine on the LAN.

Museum

The S3-compatible buckets have to be configured in museum.yaml file.

General Configuration

Some of the common configuration that can be done at top-level are:

1. SSL Configuration: If you need to configure SSL (i. e., the buckets are accessible via HTTPS), you'll need to set s3.are_local_buckets to false.

2. Path-style URLs: Disabling s3.are_local_buckets also switches to the subdomain-style URLs for the buckets. However, some S3 providers such as MinIO do not support this.

   Set s3.use_path_style_urls to true for such cases.

Replication

IMPORTANT

Replication works only if all 3 storage buckets are configured (2 hot and 1 cold storage).

For more information, check this discussion and our article on ensuring reliability.

Replication is disabled by default in self-hosted instance. Only the first bucket (b2-eu-cen) is used.

Only the names are specifically fixed, you can put any other keys in configuration body.

Use the s3.hot_storage.primary option if you'd like to set one of the other pre-defined buckets as the primary bucket.

To enable replication after configuring all 3 storage buckets, set replication.enabled to true in museum.yaml:

replication:
    enabled: true

Bucket configuration

The keys b2-eu-cen (primary storage), wasabi-eu-central-2-v3 (secondary storage) and scw-eu-fr-v3 (cold storage) are hardcoded, however, the keys and secret can be anything.

It has no relation to Backblaze, Wasabi or Scaleway.

Each bucket's endpoint, region, key and secret should be configured accordingly if using an external bucket.

If a bucket has SSL support enabled, set s3.are_local_buckets to false. Enable path-style URL by setting s3.use_path_style_urls to true.

NOTE

You can configure this for individual buckets over defining top-level configuration if you are using the latest server image (August 2025).

A sample configuration for b2-eu-cen is provided, which can be used for other 2 buckets as well:

b2-eu-cen:
    are_local_buckets: true
    use_path_style_urls: true
    key: <key>
    secret: <secret>
    endpoint: localhost:3200
    region: eu-central-2
    bucket: b2-eu-cen

Using the mobile app or another device

The quickstart's sample sets endpoint: localhost:3200. This works for the museum container itself (thanks to the socat service in compose.yaml), but museum also hands this address back to clients as part of pre-signed upload URLs. On a phone or any machine other than the server, localhost resolves to the device itself, so uploads never reach MinIO and fail silently. Museum logs OBJECT_SIZE_FETCH_FAILED: dial tcp …: i/o timeout on commit.

Set endpoint to an address that is reachable both from the museum container and from your clients. On a LAN, the server's IP works:

b2-eu-cen:
    key: <key>
    secret: <secret>
    endpoint: 192.168.1.100:3200
    region: eu-central-2
    bucket: b2-eu-cen

With a reverse proxy, use the external hostname (e.g. s3.example.com). The socat service in compose.yaml is only needed when endpoint remains localhost:3200; once you switch to a LAN IP or domain, you can remove it.

CORS (Cross-Origin Resource Sharing)

If you cannot upload a photo due to CORS error, you need to fix the CORS configuration of your bucket.

Use the content provided below for creating a cors.json file:

{
    "CORSRules": [
        {
            "AllowedOrigins": ["*"],
            "AllowedHeaders": ["*"],
            "AllowedMethods": ["GET", "HEAD", "POST", "PUT", "DELETE"],
            "MaxAgeSeconds": 3000,
            "ExposeHeaders": ["Etag"]
        }
    ]
}

You may have to change the AllowedOrigins to allow only certain origins (your Ente web apps and Museum) for security.

NOTE

Newer Ente builds include a Content-MD5 header on upload requests (and UPLOAD-URL when routing through the upload worker). If your provider requires an explicit allow list instead of ["*"], make sure these headers are present in AllowedHeaders, otherwise preflight checks will fail, and uploads will be blocked.

Assuming you have AWS CLI on your system and that you have configured it with your access key and secret, you can execute the below command to set bucket CORS. Make sure to enter the right path for the cors.json file.

aws s3api put-bucket-cors --bucket YOUR_S3_BUCKET --cors-configuration /path/to/cors.json

MinIO

Assuming you have configured an alias for MinIO account using the command:

mc alias set storage-account-alias minio-endpoint minio-key minio-secret

where,

1. storage-account-alias is a valid storage account alias name
2. minio-endpoint is the endpoint where MinIO is being served without the protocol (http or https). Example: localhost:3200
3. minio-key is the MinIO username defined in MINIO_ROOT_USER
4. minio-secret is the MinIO password defined in MINIO_PASSWORD

To set the AllowedOrigins Header, you can use the following command:.

mc admin config set storage-account-alias api cors_allow_origin="*"

You can create also .csv file and dump the list of origins you would like to allow and replace the * with path to the CSV file.
